Pressure Relief Air Mattress with Pump

This is a  4.5″ Cell Pad Alternating Pressure Mattress is made up of 18 pieces of 11 cm / 4.5″ cells.

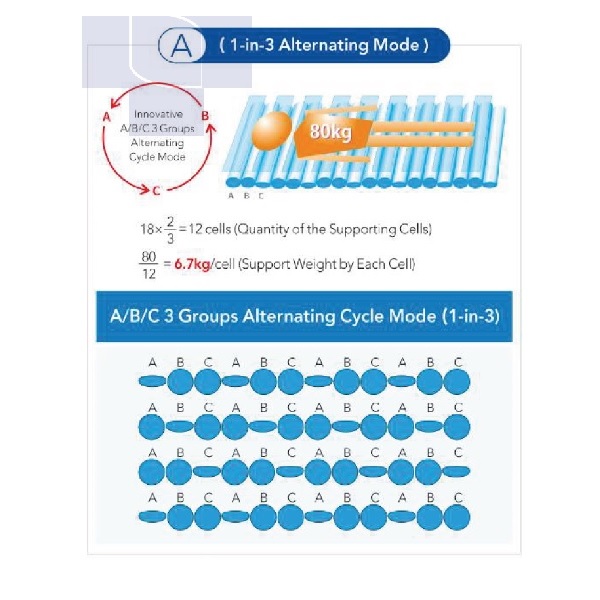

The Alternating System includes A/B/C 3 groups of cells design (6 cells per group). The alternating system means that there will always be 2 groups of cells that are inflating,  hence at anytime, 12 cells will be sharing and supporting the patient’s full weight.

Key Features of this Pressure Relief Air Mattress:

• Ultra Quiet Pump
• Support Better Sleeping Quality
• Waterproof
• Air Permeability allows patient to be more comfortable
• Easy to Clean
• Simple to operate, output pressure can be easily adjusted
• Light weight

Specification of Mattress:

• Material of Cover: Nylon+PU
• Material of Cell: Nylon+PVC
• Cell: 11cm / 4.5″ Inflation Cell X 18 Pieces + 1 Free Spare Cell
• Inflation Size(length x width x height): 200cm x 90cm x 11 cm
• Max Weight of Patient Supported: 145kg
• Material Thickness: 0.36mm
• Pressure Ulcer Stage: I,II
• Mattress System: Overlay

Specification of Pump:

• Alternating Cycle Mode: A/B/C Alternating (1-in-3)
• Size(length x width x height): 27cm x 13cm x 10.5cm
• Input Power: 220v / 110v ; 50Hz / 60Hz
• Output Pressure Range: 55-120mmHg
• Air output: 7-8 L/min
• Cycle time: 12 min
• Synchronous Motor: TW Ann Yih Brand
• Warranty: 12 months
